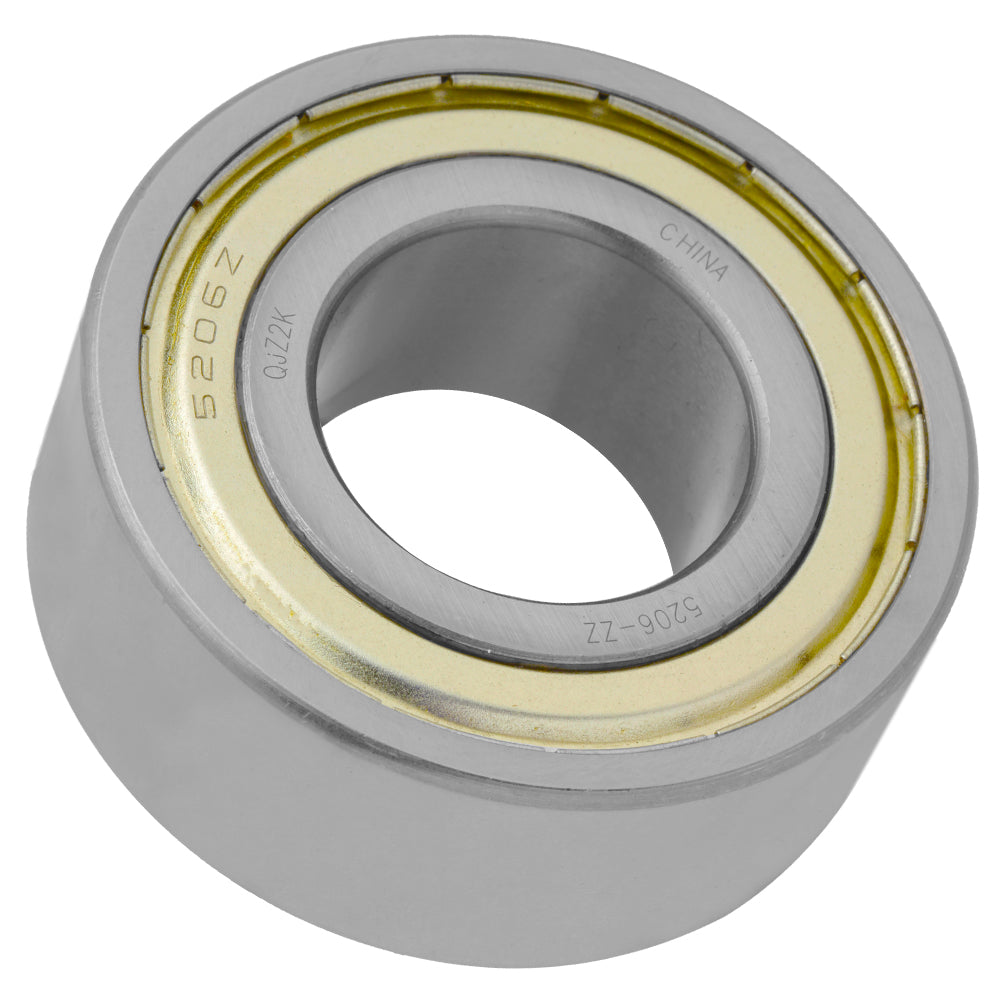

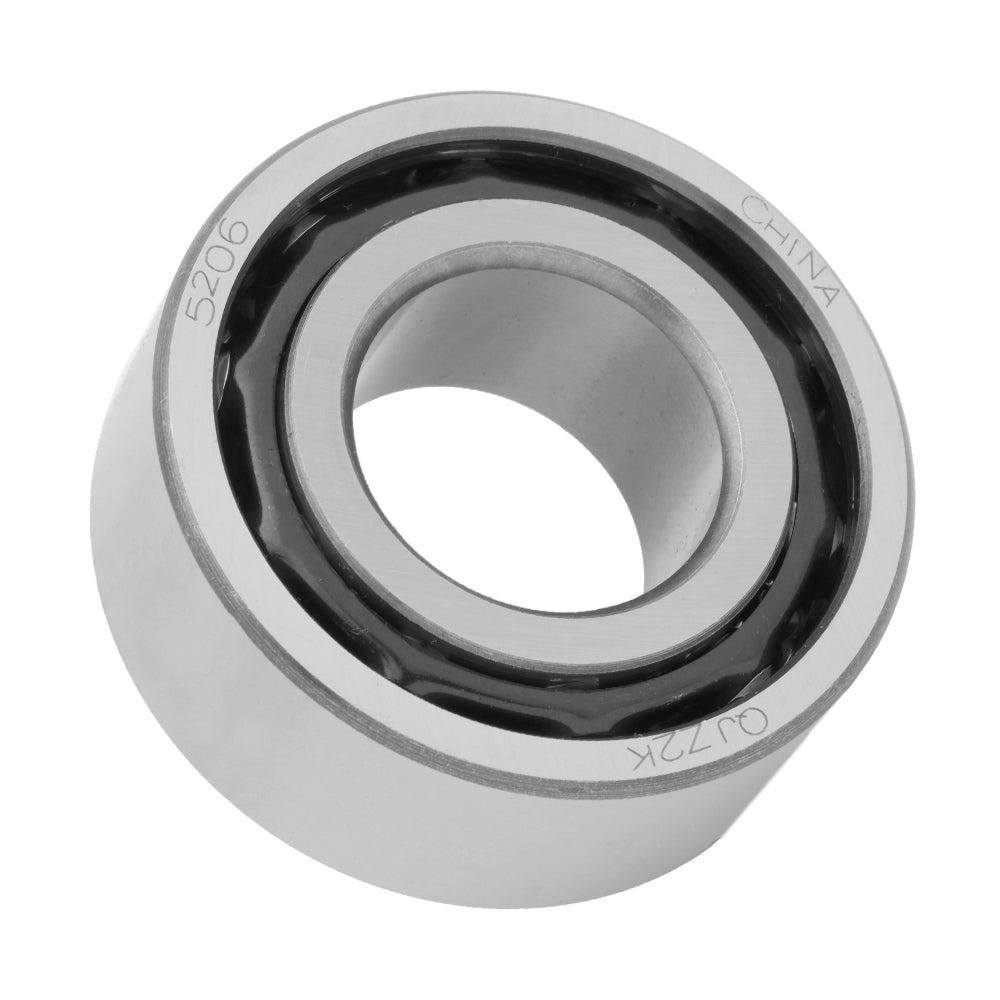

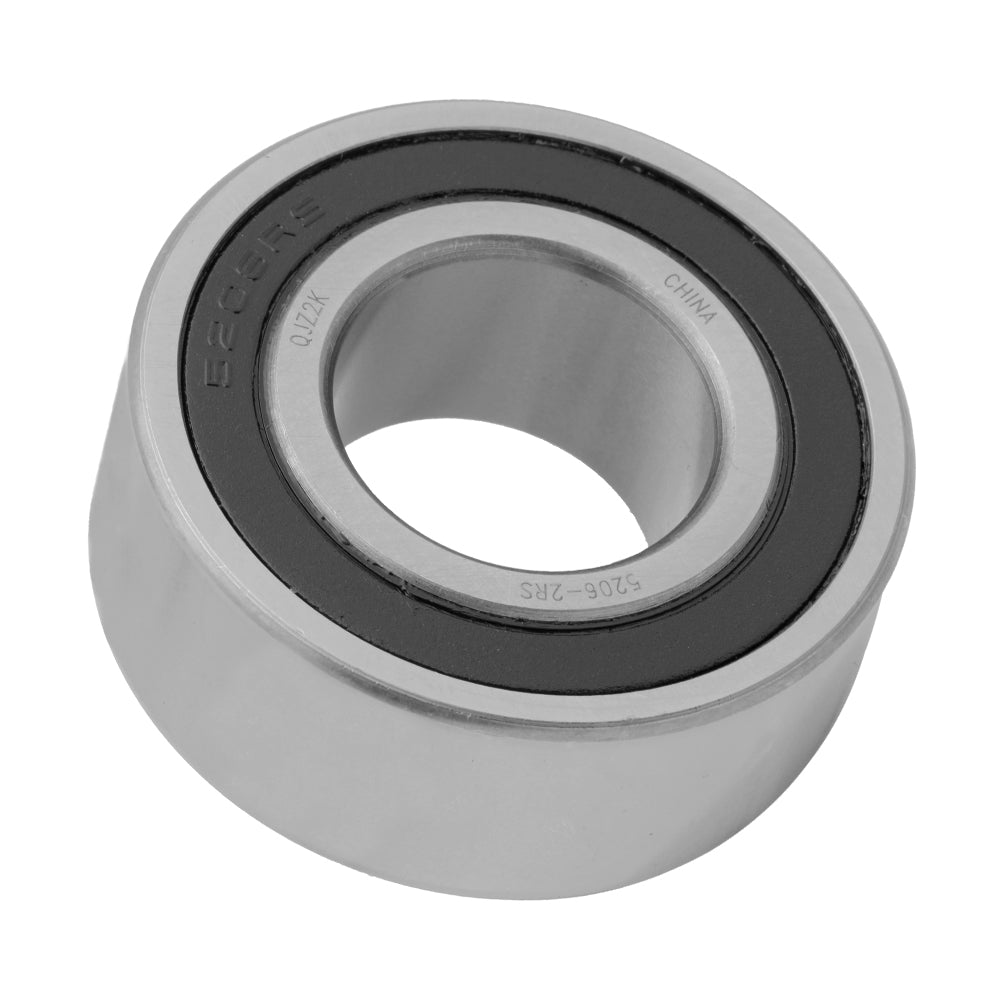

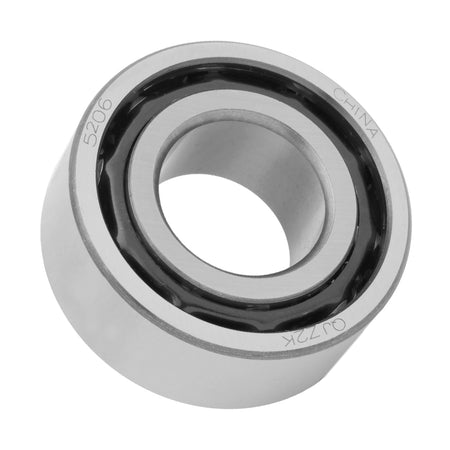

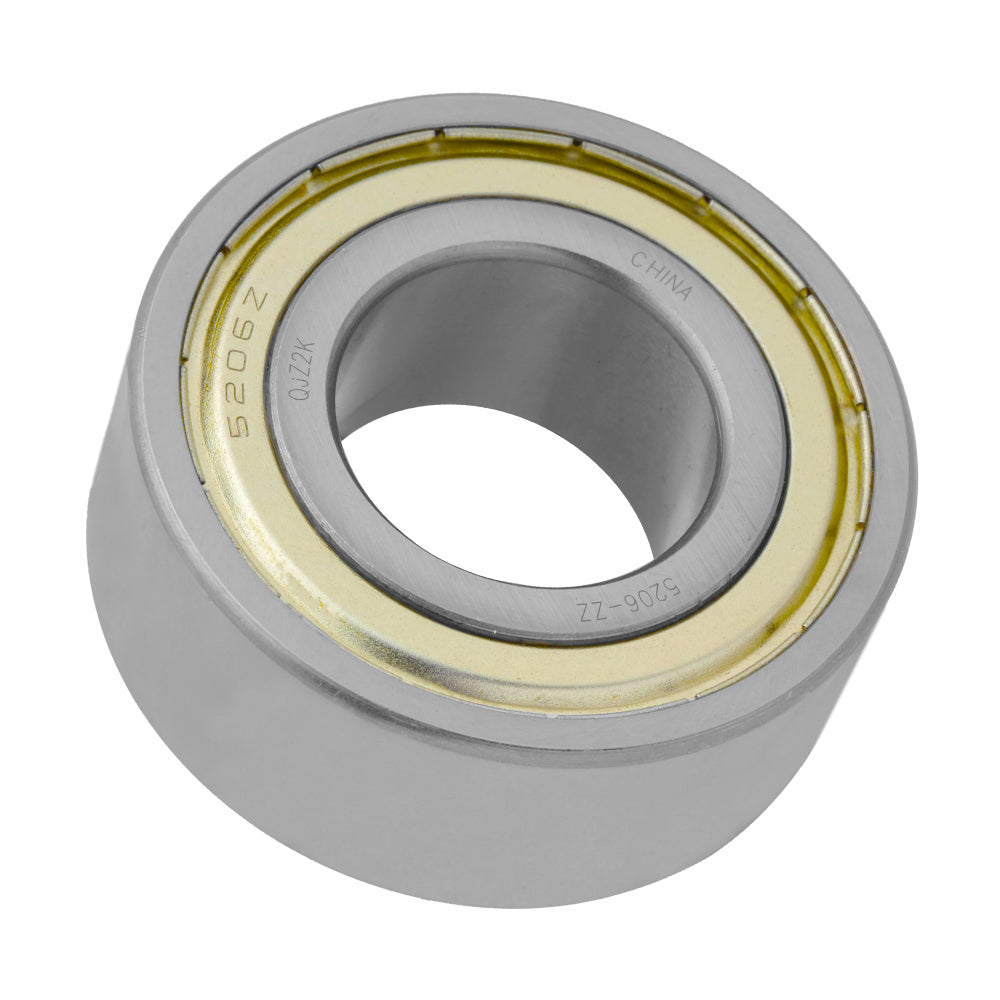

5206 - Angular Contact Ball Bearing, 1.181" Bore (ID)

In stock
Seal Type
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$8.75
Product details
  • Type Ball Bearings
  • Part Number 5206
  • Bore (Inner Diameter) 1.181 in | 30 mm
  • Outer Diameter 2.441 in | 62 mm
  • Width 0.938 in | 23.812 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5206
Inner Diameter (ID) 1.181 in | 30 mm
Outer Diameter (OD) 2.441 in | 62 mm
Width 0.938 in | 23.812 mm

Cross Reference (Interchangeable Numbers)

5206RS, 5206A.2RSTN9, 5206ARS, 5206PP, 5206DDU, 5206LLU, 5206LLB, 5206BVV, 5206B.2RSR, 5206-2NSE, 5206RST, 3206-2RS, 3206ZZ, 5206MFF, 5206E2Z, 55506, 5206ZZ, 5205CFF1, 3206B.2ZR, 5206-SBKFF, 5206A2Z, 5206CFF, 3206.2Z, 3206B.2ZR.TVH, 3206B.2ZR.TNG, 3206B.2ZR.TNH, 3206A-2ZTN9, 3206B-2ZTNG, 3206B-2ZTNH, 3206.2RS, 3206B.2RSR.TVH, 3206B.2RSR.TNG, 3206B.2RSR.TNH, 3206A-2RS1TN9, 3206B-2RSTNG, 3206B-2RSTNH, 5206A2RS, 5206CZZ, 3206B.2RSR, 10X-331, M-1687, 5206A-2RS1TN9, 5206CLLU, 5206EE, 5206 2RS, 5206 RS, 5206WSS, FS55506, 3206, 5206M, 5206E, 5206W, 5206C, 5206A, 5206K, 3206B.TVH, 3206B.TNG, 3206B.TNH, 3206J, 3206ATN9, 3206B, 3AANON30, 3AANON30103, 3056206, 30BE32



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
