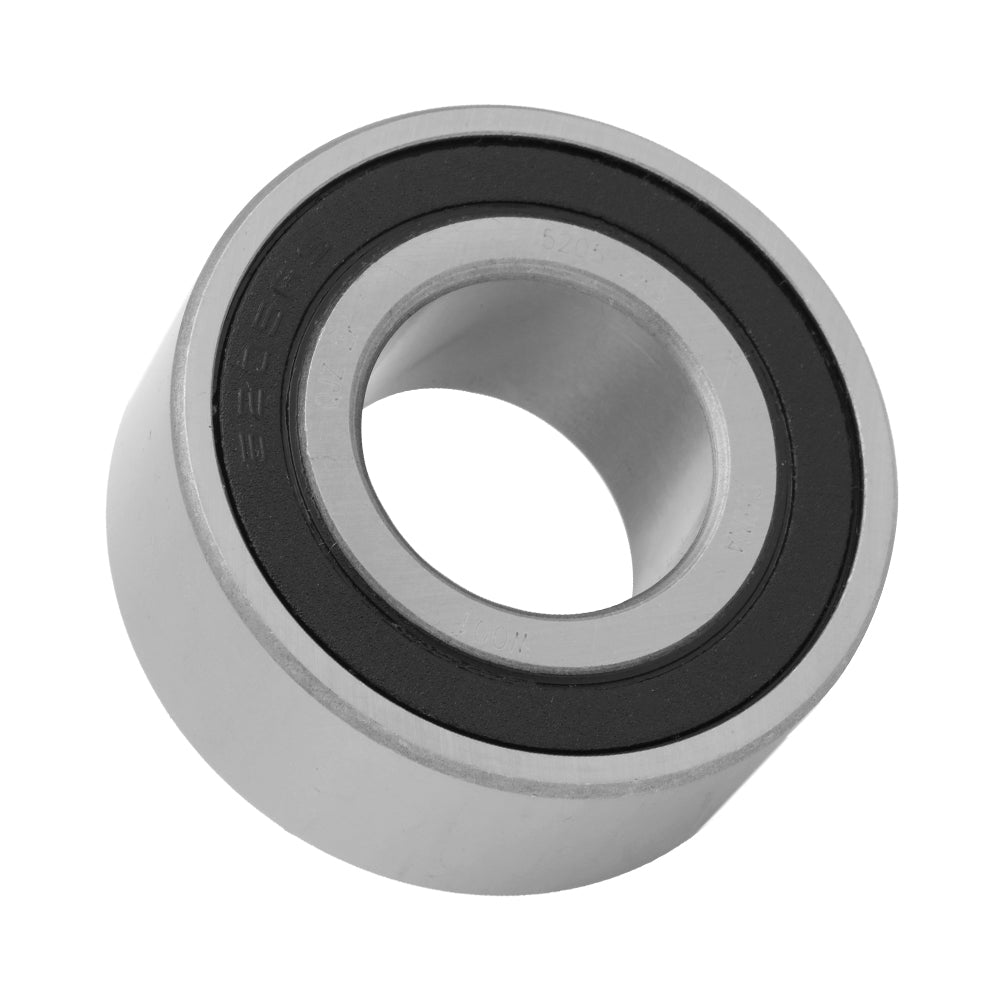

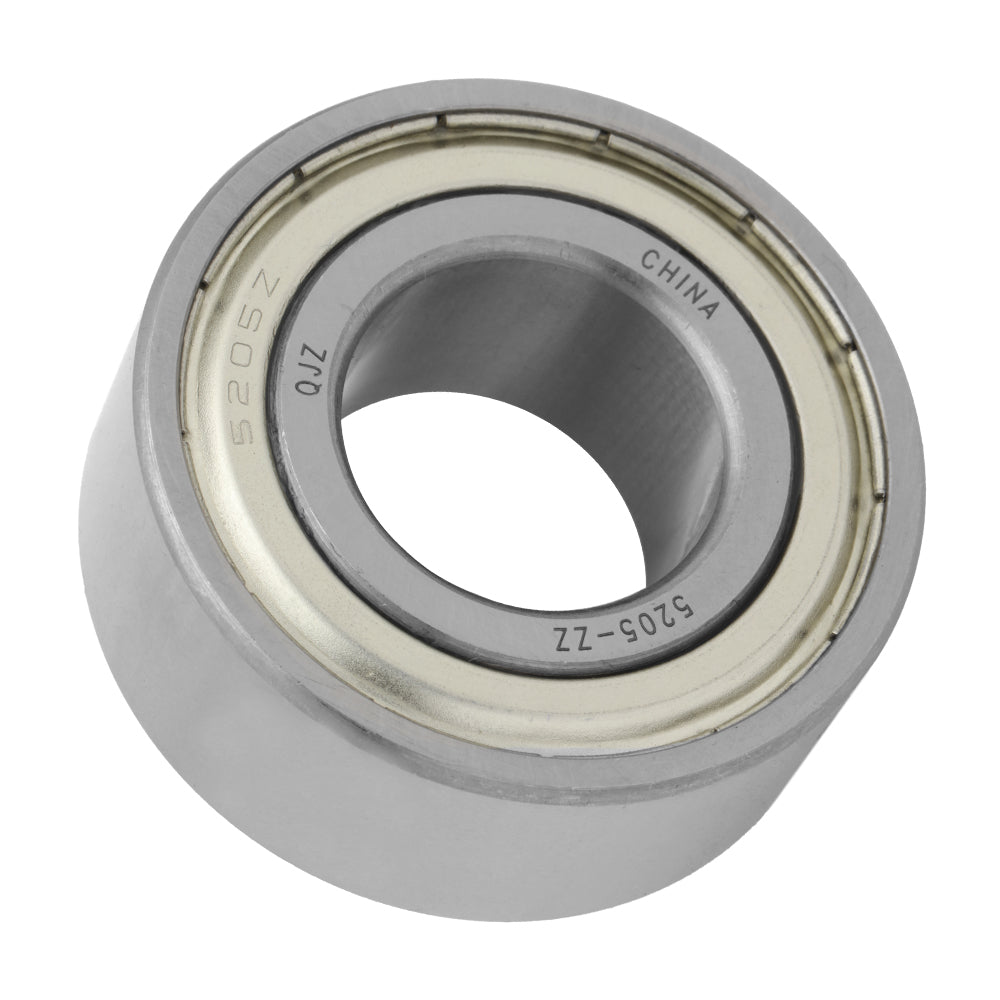

5205 - Angular Contact Ball Bearing

In stock
Seal Type

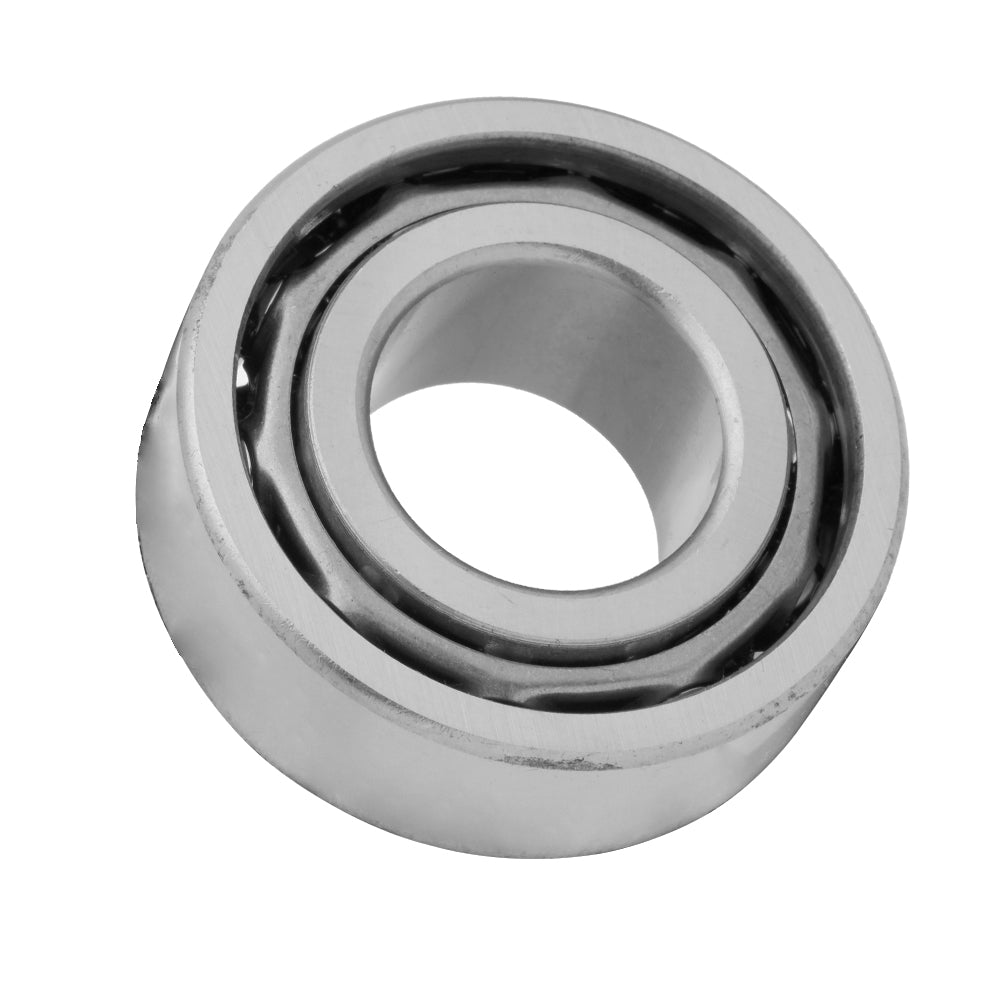

Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$6.90
Product details
  • Type Ball Bearings
  • Part Number 5205
  • Bore (Inner Diameter) 0.984 in | 25 mm
  • Outer Diameter 2.047 in | 52 mm
  • Width 0.813 in | 20.638 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5205
Inner Diameter (ID) 0.984 in | 25 mm
Outer Diameter (OD) 2.047 in | 52 mm
Width 0.813 in | 20.638 mm

Cross Reference (Interchangeable Numbers)

5205PP, 5205SBKSS, 5205LLUT, 5205DDUT, 5205VVTN, 5205LLBT, 5205-2NSE, 5205-2RSTN9, B5205-2RSRTN9, 3205-2RST, 3205RSTN, 3205B.2RSR.TNG, 3205B.2RSR.TNH, 3205B-2RSTNH, 5205A2RS, 5205CZZ, 3205B.2RSR, 5205BLLU, 5205E2RS, 5205MZZ, 5205EE, 3205.2RS, 3205A-2RS1TN9, 3205B-2RSTNG, 3205B.2RSR.TVH, 5205 2RS, 5205 RS, 5205RS, 5205KDD, 5205WSS, FS55505, 77505, 3205.2Z, 5205CFF, 5205-2ZJ1, B5205-2ZR, 5205A2Z, 3205B.2ZR, 5205-SBKFF, 3205ZZ, 5205MFF, 5205E2Z, 55505, 3205A-2ZTN9, 3205B.2ZR.TVH, 3205B.2ZR.TNG, 3205B.2ZR.TNH, 3205B-2ZTNG, 3205B-2ZTNH, 5205-2ZTN9, 5205BZZ, 5205 ZZ, 5205ZZ, 5205 Z, 5205C, 5205a, 5205K, 3205, 5205M, 5205E, 3205ATN9, 3205B.TVH, 3205B.TNG, 3205B.TNH, 3205B, 3205BG14, DE25, 25BE32, 3056205, 2AANON25, 3205J



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
