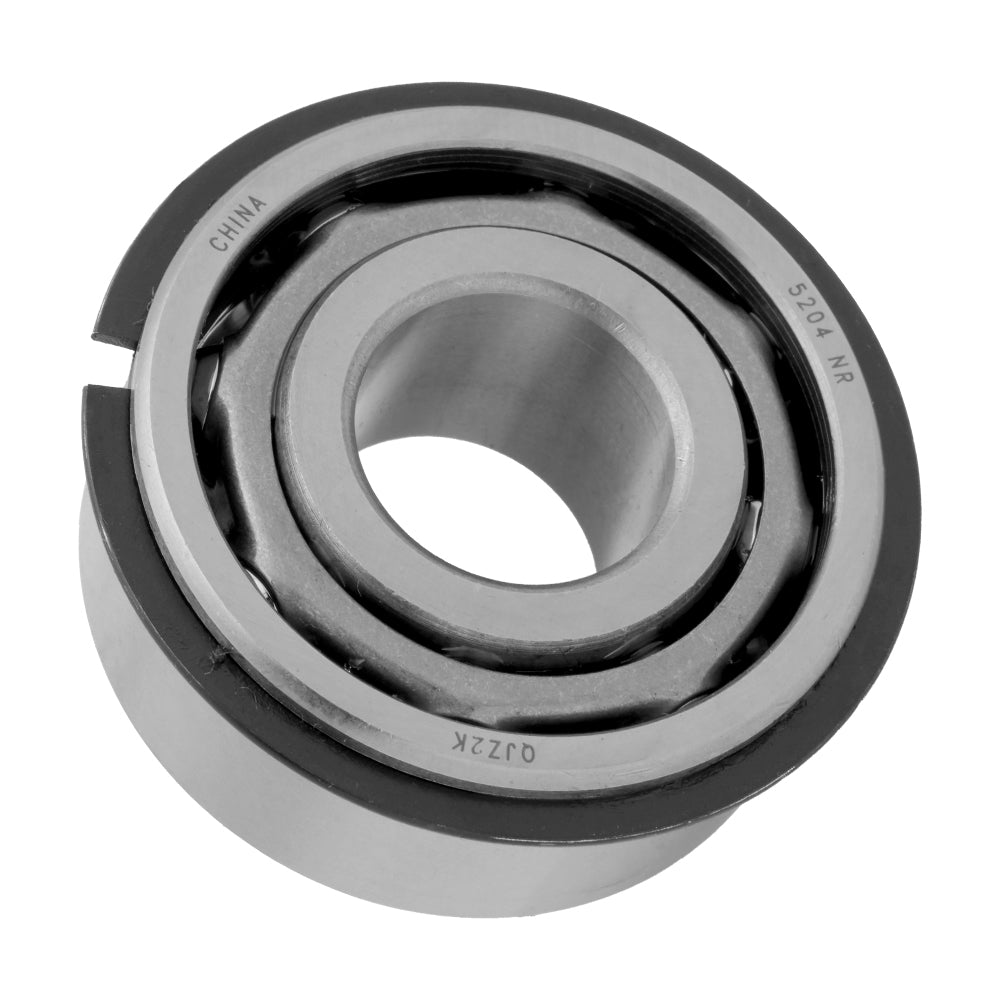

5204 - Angular Contact Ball Bearing with Snap Ring, 0.787" Bore (ID) - Open Style (No Seal)

In stock
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$8.50
Product details
  • Part Number 5204-OPEN-NR
  • Material Standard
  • Seal Type Open Style (No Seal)
  • Bore (Inner Diameter) 0.787 in | 20 mm
  • Outer Diameter 1.85 in | 47 mm
  • Width 0.813 in | 20.638 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5204
Inner Diameter (ID) 0.787 in | 20 mm
Outer Diameter (OD) 1.85 in | 47 mm
Width 0.813 in | 20.638 mm

Cross Reference (Interchangeable Numbers)

5204.2RS, 5204PP, 5204SBKSS, 5204LLU, 5204DDU, 5204VV, 5204LLB, 5204-2NSE, 5204.2RSJ1, B5204-2RSR, 3204.2RS, 5204A2RS, 5204CZZ, 3204B.2RSR, 3204B.2RSR.TVH, 5204BLLU, 5204E2RS, 5204MZZ, 5204EE, 3204B.2RSR.TNG, 3204B.2RSR.TNH, 3204A-2RS1TN9, 3204B-2RSTNG, 3204B-2RSTNH, 5204 2RS, 5204 RS, 5204RS, FS55504, 77504, 3204.2ZTN9, 5204CFF, B5204.2ZTN9, B5204-2ZRTN, 3204ZZ, 5204Z, 5204ZZ, 5204A2Z, 5204-SBKFF, 3204B.2ZR, 5204MFF, 5204E2Z, 55504, 5204A-2ZTN9, 3204B.2ZR.TVH, 5204AZZ, 3204.2Z, 3204B.2ZR.TNG, 3204B.2ZR.TNH, 3204A-2ZTN9, 3204B-2ZTNG, 3204B-2ZTNH, 5204 ZZ, 5204 Z, 5204C, 5204A, 5204K, 3204, 5204M, 5204E, 20BE32, 3204B.TVH, 3056204, 1AANON20, 3204B.TNG, 3204B.TNH, 3204J, 3204ATN9, 3204B



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
