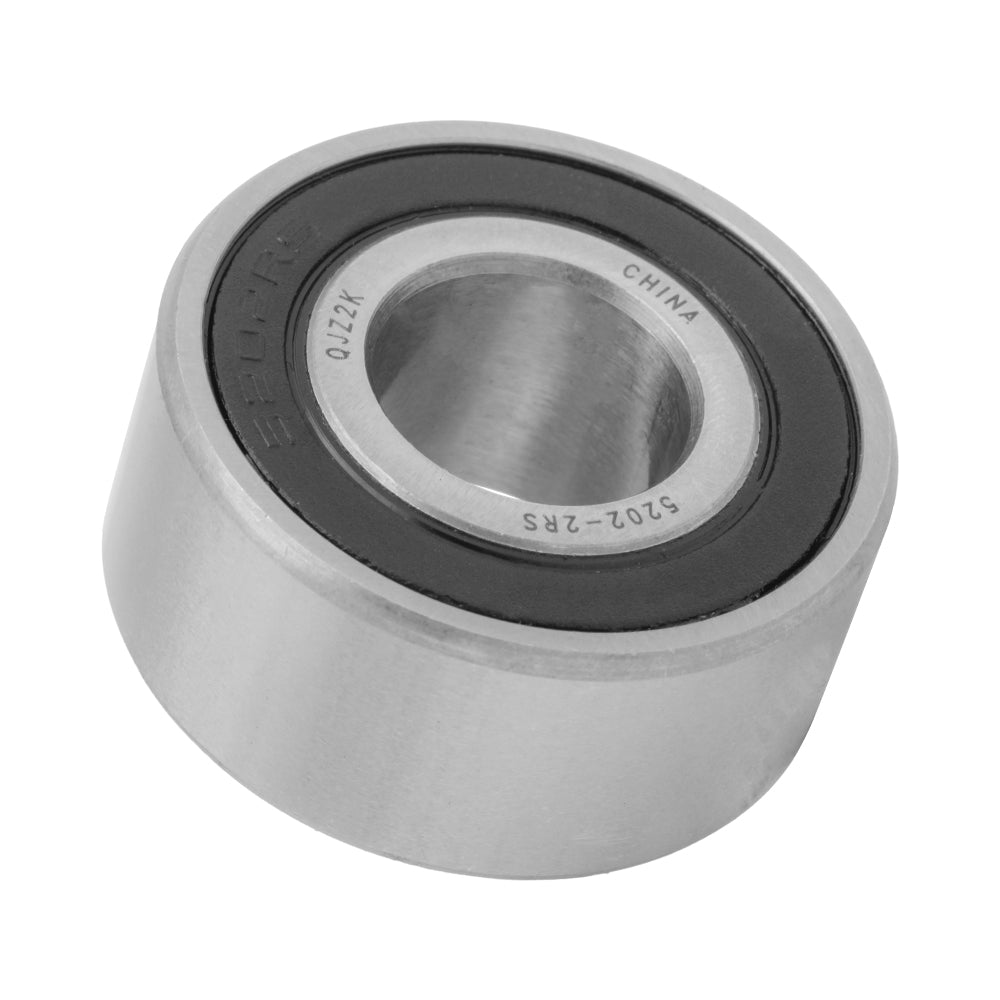

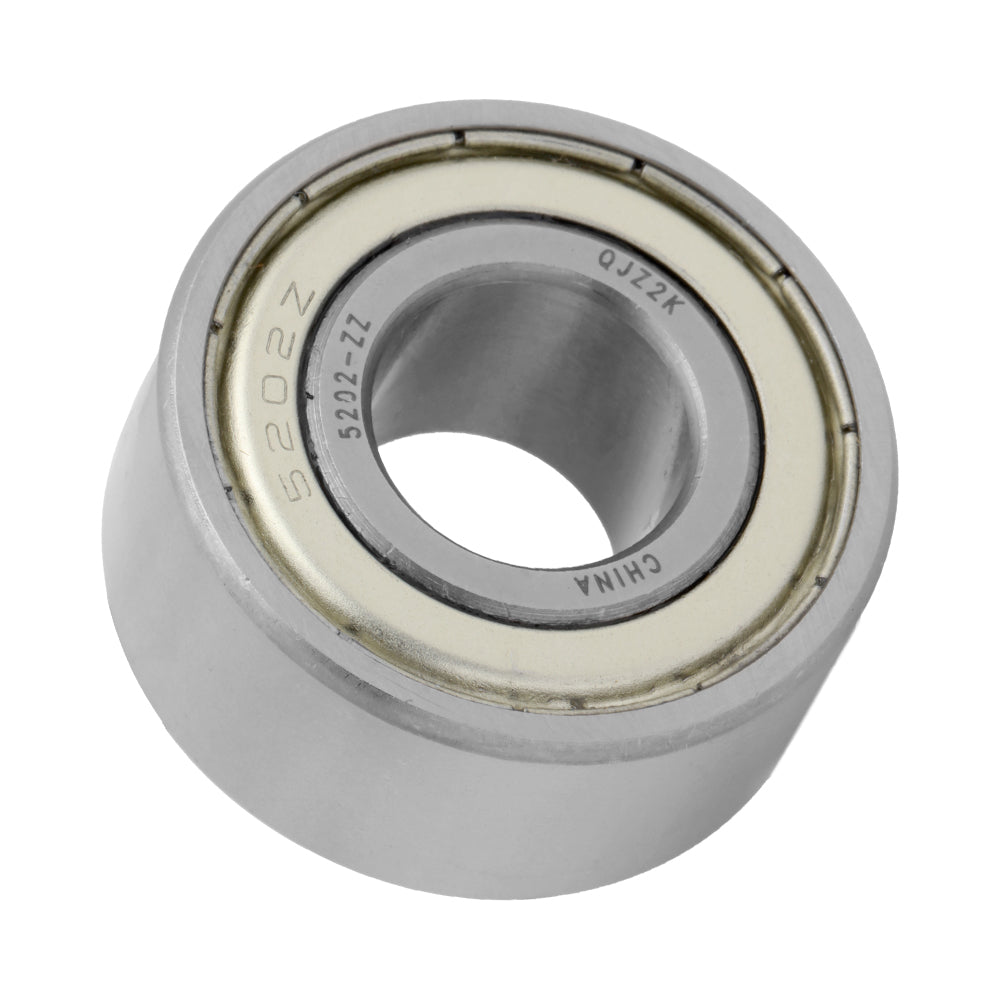

5202 - Angular Contact Ball Bearing

In stock
Seal Type
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$4.50
Product details
  • Type Ball Bearings
  • Part Number 5202
  • Bore (Inner Diameter) 0.591 in | 15 mm
  • Outer Diameter 1.378 in | 35 mm
  • Width 0.625 in | 15.875 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5202
Inner Diameter (ID) 0.591 in | 15 mm
Outer Diameter (OD) 1.378 in | 35 mm
Width 0.625 in | 15.875 mm

Cross Reference (Interchangeable Numbers)

FS55502, 5202.2ZTN, 5202SBKFF, 3202-2Z, B5202-2ZR, 5202Z, 5202ZZ, 5202A2RS, 5202SBKZZ, 3202B.2RSR, 5202 RS, 5202RS, 3202.2Z, 3202B.2ZR.TVH, 3202B.2ZR.TNG, 3202B.2ZR.TNH, 5202A-2ZTN9, 5202BZZ, 5202A2Z, 55502, 3202B.2ZR, 3202A-2ZTN9, 3202B-2ZTNG, 3202B-2ZTNH, 5202 ZZ, 5202 Z



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
