5 on 4.5" - Hub Drum & Electric Brake 10" for Spindle #84 - 3,500 lbs Trailer Axle Kit, L44649/10 & L68149/11 Bearing Seal Kit
Couldn't load pickup availability
3,500 lb Trailer Axle Kit with Spindle #84, 10" Electric Brakes & 5 on 4.5 Hub Drum

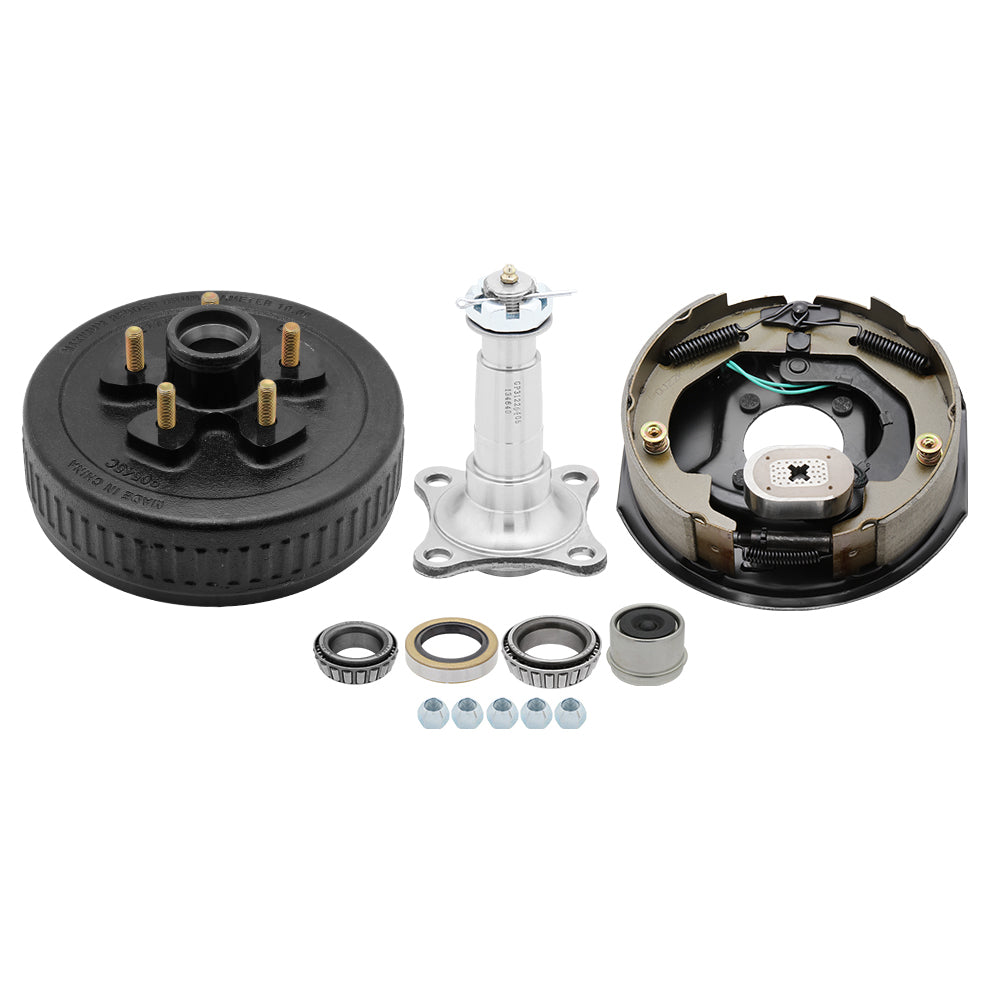

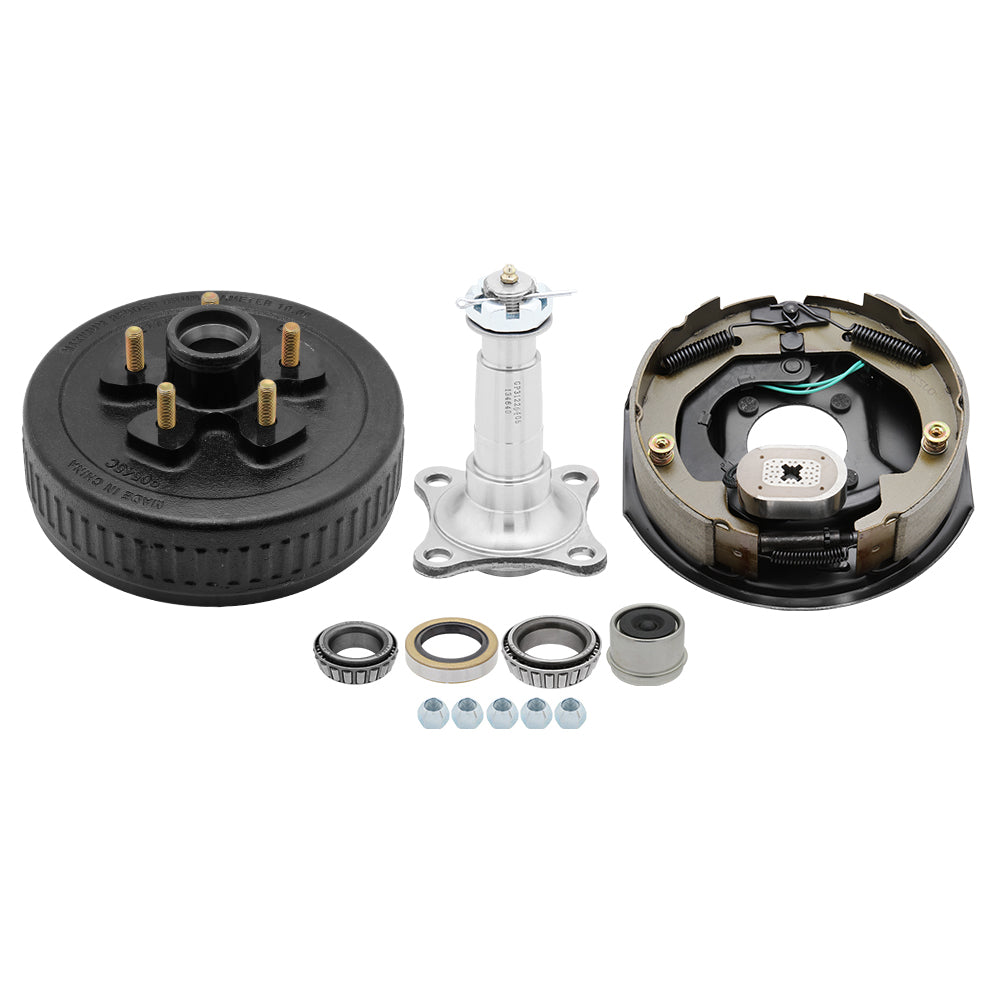

This complete trailer axle component kit is designed for 3,500 lb trailer applications and includes a Spindle #84, 10-inch electric brake assemblies, 5 on 4.5" hub drums, bearings, seals, dust cap, lug nuts, spindle hardware, and installation components. Engineered for dependable towing performance, this kit is ideal for utility trailers, cargo trailers, boat trailers, landscape trailers, and custom trailer builds.
Product Specifications
| Specification | Details |
|---|---|
| Axle Capacity | 3,500 lb Trailer Axles |

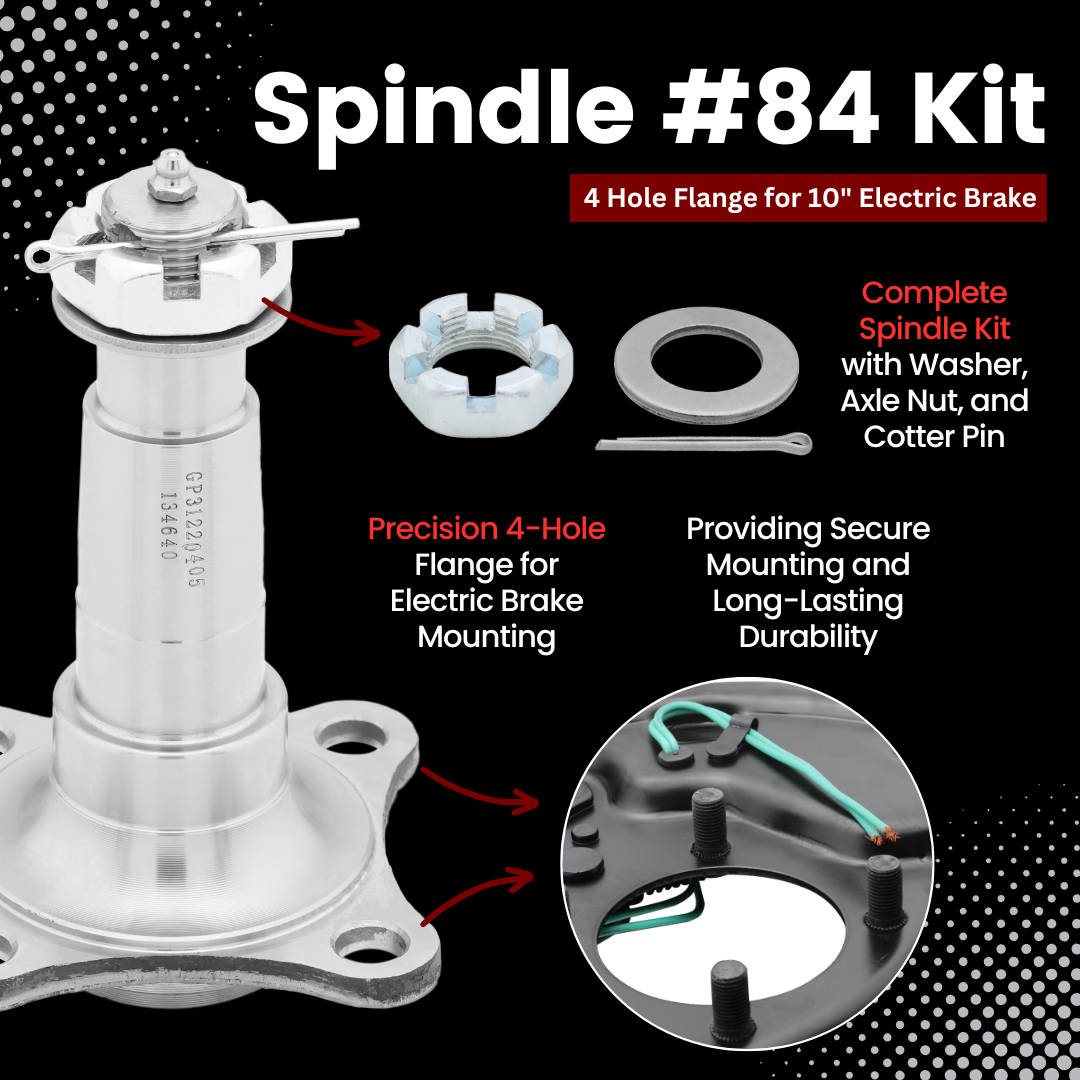

| Spindle Type | Spindle #84 with Weld-On Brake Flange |

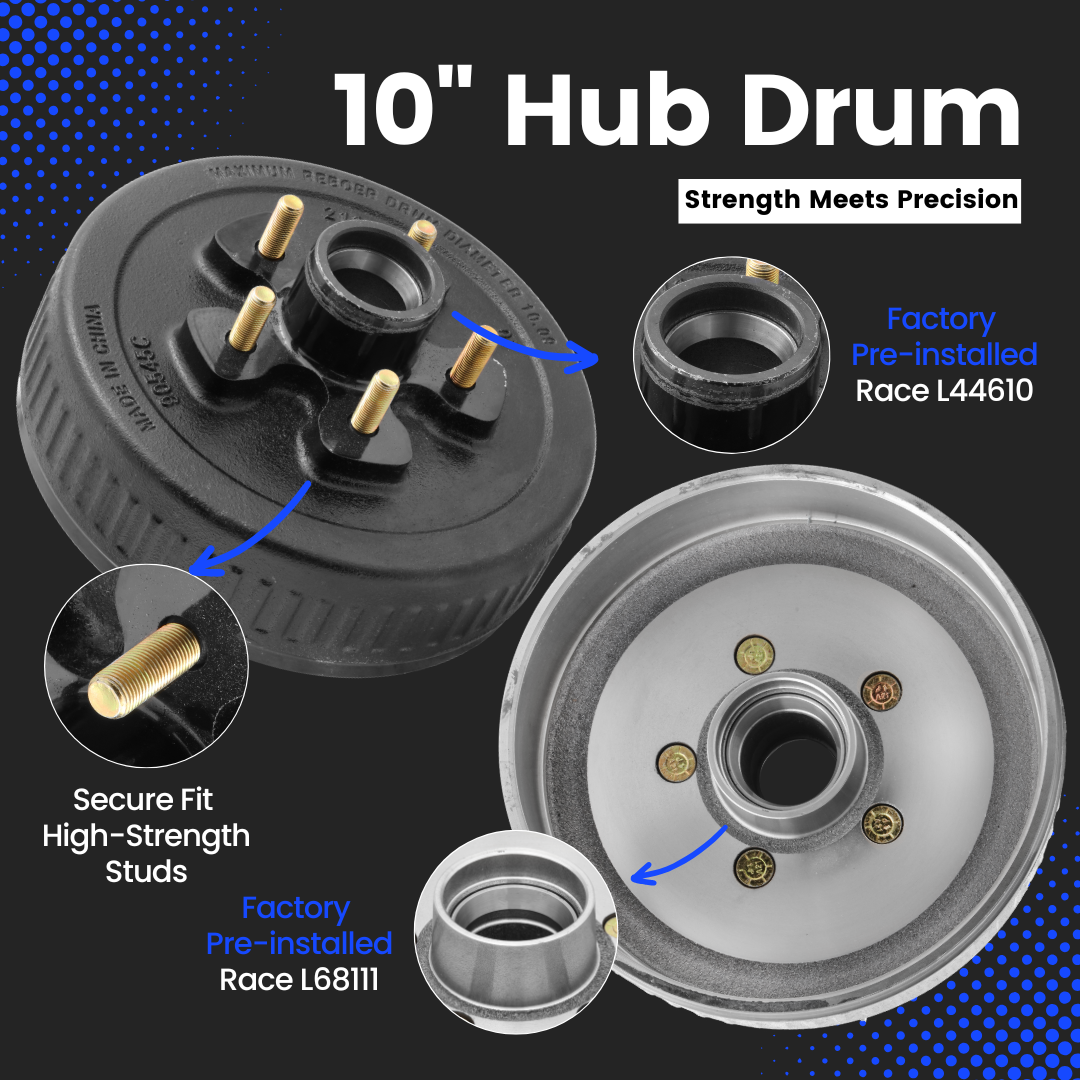

| Hub Drum | 10" Diameter, 5 on 4.5" Bolt Pattern |
| Races Installed | L44610 / L68111 |

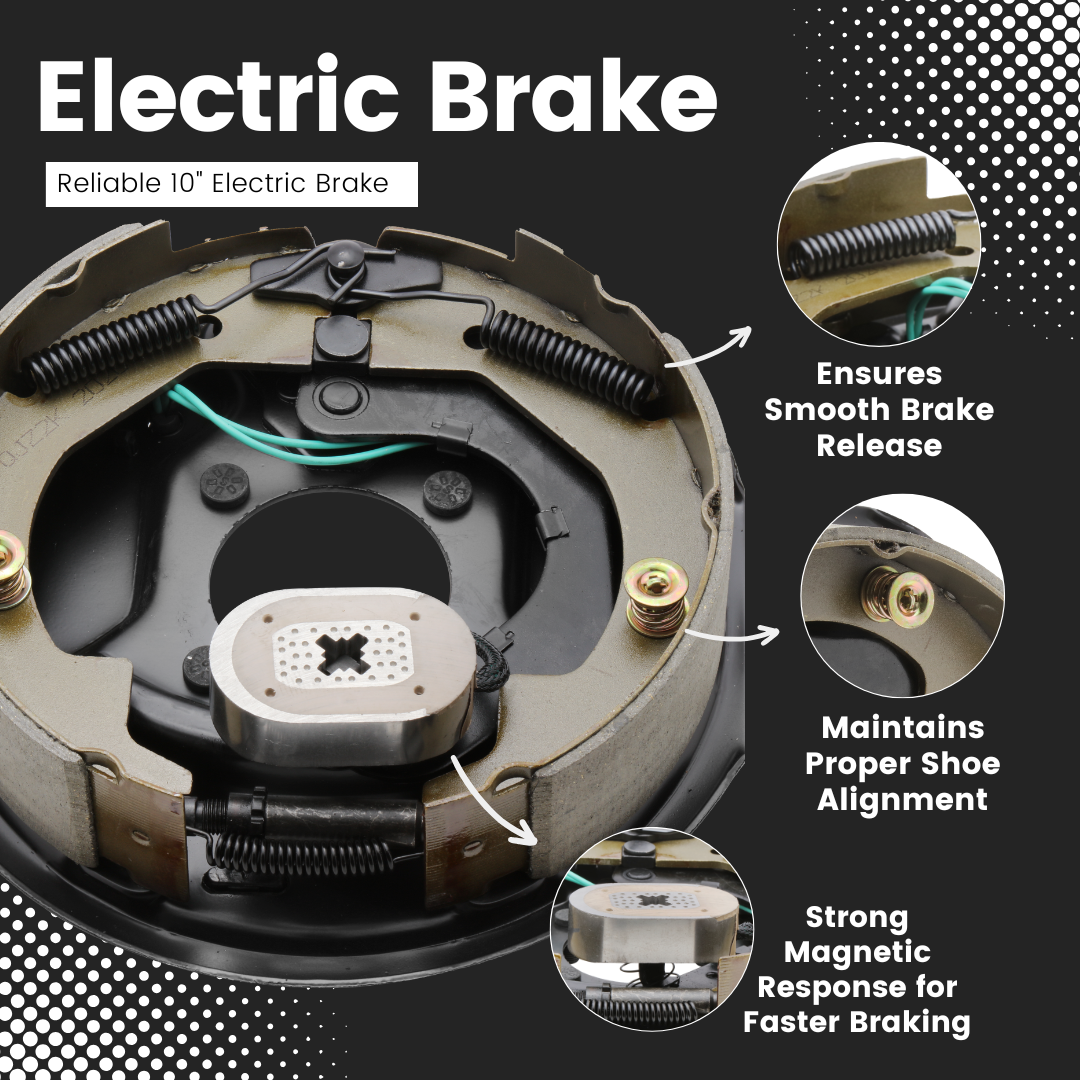

| Electric Brakes | 10" x 2-1/4" Electric Brake Assemblies, Left & Right Hand |

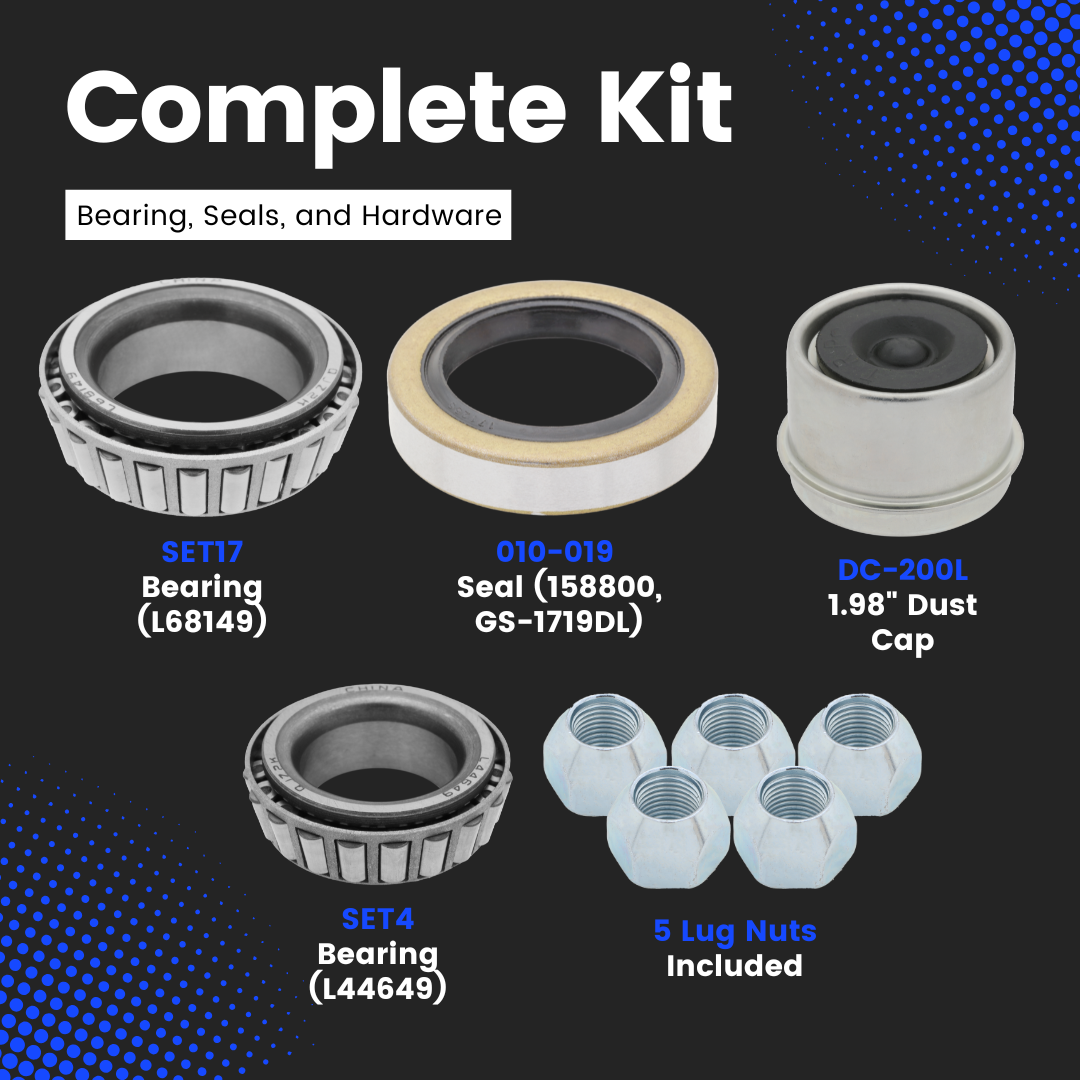

| Bearings |
L44649/L44610 (SET4) L68149/L68111 (SET17) |
| Grease Seal | 171255TB (010-019-00, 158800, GS-1719DL, 58846, 171255, 473336, AD2548EO) |
| Seal Dimensions | ID: 1.719" | OD: 2.565" | Width: 0.5" |

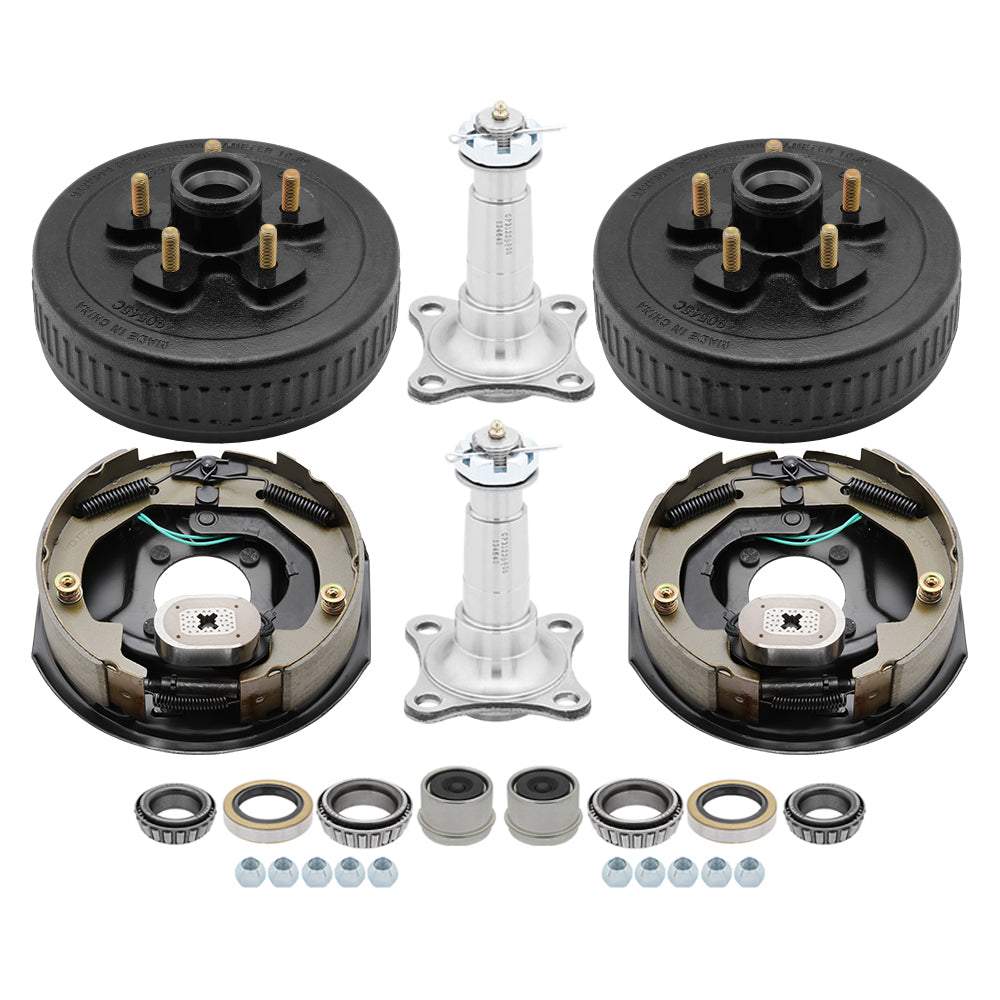

| Kit Includes | Spindle #84, 10" Electric Brakes, Hub Drum, Bearings, Seals, Dust Cap, Lug Nuts, Washer, Spindle Nut & Cotter Pin |
Complete Trailer Brake & Hub Solution
Built for strength, durability, and long-term performance, this complete trailer setup provides smooth hub rotation, dependable braking power, and secure wheel retention. The pre-installed races simplify installation while the included hardware and brake components make this an ideal solution for repairs, upgrades, and new trailer builds.
